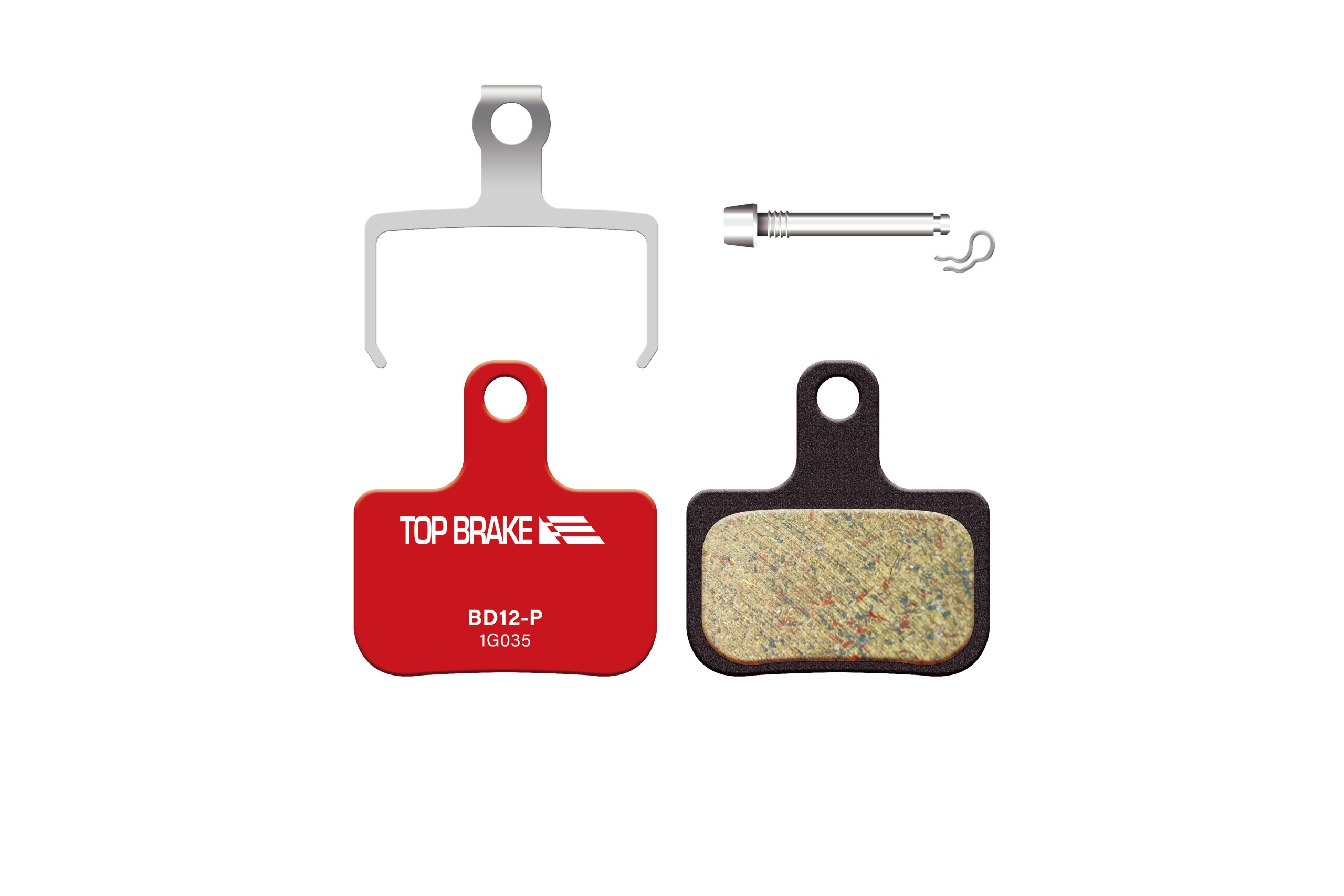

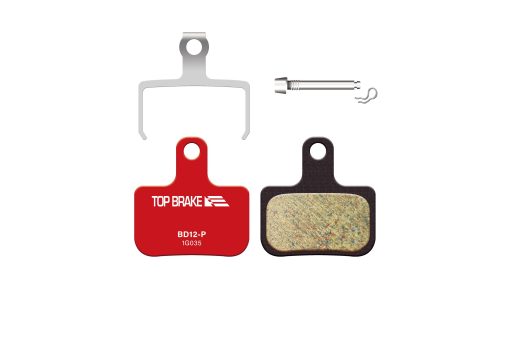

Avid DB1 3 5 Sram Level T TL Ultimate B1 Ceramic compound MTB Gravel Disc Brake Pad BD12-P
Price range: $ 22.98 through $ 42.98
Performance Version
– Ceramic compound / Non asbestos
– Made in Taiwan
– What’s Included
All options include brake pads (1 pair = for one wheel) + spring.
💡 “w/Pin” = with screw + clip
Compatible Models
Avid
DB1, DB3, DB5
Sram
Level T, Level TL
TLM B1 (2020 Model), Level Ultimate B1 (2020 Model)
Force eTap AXS, Red eTap AXS (Gen. 2 ‘Two-Piece’ caliper)
* BD03 and BD12 are identical in size and braking performance. The only difference is the tab design—BD03 has a knurled tab for easier handling, while BD12 has a sleeker OEM-style tab. They are fully interchangeable and compatible, so you can confidently use either model.
👉Click here to view BD03 product page
Another version option Premiun E+ Version
Additional information
| Size | W:29.8 x H:30.8 mm W:1.17 x H:1.21 in |
|---|---|
| Version / color | Performance / Red |
| Package Contents | 1 pair of brake pads + 1 spring |
| Note | – |
Q1: What’s the difference between BD03 and BD12? Are they interchangeable?
A: Both pads are identical in size and braking performance. The only difference is in the tab design—BD03 has a knurled tab for easier handling, while BD12 has a sleeker OEM-style tab. They are fully interchangeable.
Q2: Which SRAM calipers are these compatible with?
A: BD03 / BD12 are compatible with SRAM 2-piston calipers including Level Stealth, Level T / TL / TLM / ULT, S-300, RED, Force, Rival, Apex, and S-900 Aero.
Related Products
High Performance
Excellent instant brake power with comfortable braking.
Easy and Fast
Easy to install and easy to fit. Low bedding in time with good modulation. Fast to enjoy your ride.
Silent
Good anti-noise ability and quiet in most of your braking time.
Quality
Our goals! Insist to provide the fancy and best quality products to the user as always.
Testing Machine for bicycle brakes
Disc Brake Pad Installation Guide
Step 1.
First, loosen caliper mounting bolts with tool.
Step 2.
Loosen pin on top of caliper.
Step 3.
Remove existing brake pads from caliper.
Step 4.
Use tool to retract pistons back to its horizontal position.
Step 5.
Prepare new pair of TOP BRAKE disc brake pads.
Step 6.
Assembled TOP BRAKE brake pads with spring. Insert them into the caliper.
Step 7.
Tighten the mounting bolts, then later the pin.
Step 8.
When brake pad installation is completed, check if rotor is aligned at center.
| Option | 1 Pair, 1 Pair w/Pin, 2 Pairs |
|---|
