Formula Cura 4 E-bike Compound Disc Brake Pad BD20-E+
Price range: $ 27.98 through $ 28.98
Premium E+ Version
– E-bike Compound / Non asbestos
– Made in Taiwan
– What’s Included

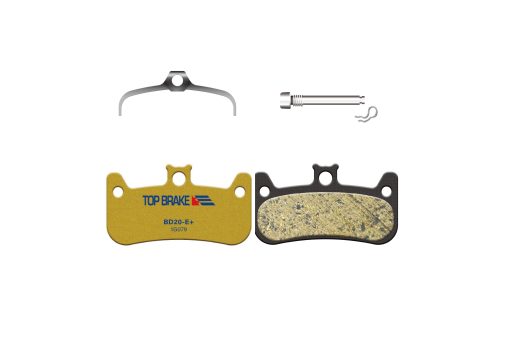

All options include brake pads (1 pair = for one wheel) + spring.
💡 “w/Pin” = with screw + clip
Compatible Models
Formula
Cura Cura 4
Another version option Performance Version
Additional information
| Size | W:43.8 x H:24.7 mm W:1.72 x H:0.97 in |
|---|---|
| Version / color | Premium E+ / Gold |
| Package Contents | 1 pair of brake pads + 1 spring |
| Note | – |
Related Brake Pad for Formula Brakes
Long lifespan
Low wearing off. Special design for Electric bike、E-MTB and heavy user.
Fade resistance
Withstand high temperature under extreme riding conditions.
Good stopping power
Power braking performance in both wet and dry.
Quality
Our goals! Insist to provide the fancy and best quality products to the user as always.
Testing Machine for bicycle brakes
Disc Brake Pad Installation Guide
Step 1.
First, loosen caliper mounting bolts with tool.
Step 2.
Loosen pin on top of caliper.
Step 3.
Remove existing brake pads from caliper.
Step 4.
Use tool to retract pistons back to its horizontal position.
Step 5.
Prepare new pair of TOP BRAKE disc brake pads.
Step 6.
Assembled TOP BRAKE brake pads with spring. Insert them into the caliper.
Step 7.
Tighten the mounting bolts, then later the pin.
Step 8.
When brake pad installation is completed, check if rotor is aligned at center.
| Option | 1 Pair, 1 Pair w/Pin |
|---|
