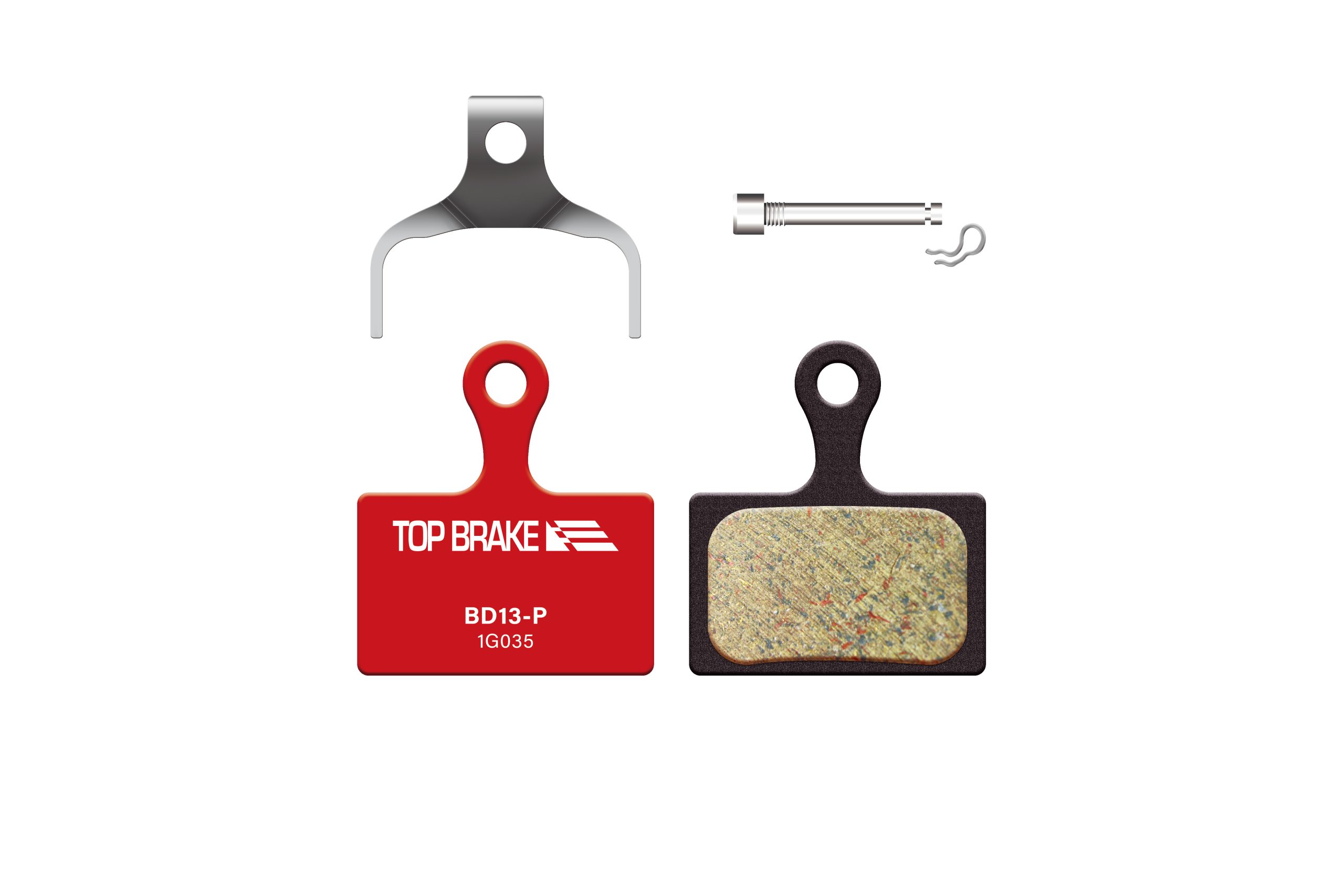

Shimano Dura Ace R9170 Tektro HD-R310 R510 Rever Trp Ceramic compound Road bike Disc Brake Pad BD13-P
Price range: $22.98 through $42.98
Performance Version
– Ceramic compound / Non asbestos
– Made in Taiwan
– What’s Included
All options include brake pads (1 pair = for one wheel) + spring.
💡 “w/Pin” = with screw + clip
Compatible Models
Rever
Attack-U/S (Flat-Mount)
MCX2 (Flat-Mount)
MCX1 (Flat-Mount)
MCX-S
Shimano
R7070
– Dura-Ace R9170
– GRX RX400, RX810
– Metrea U5000
– Tiagra 4770, R8087
– XTR M9100, M9110
– XT M8110
– SLX M7110
– Ultegra BR2070, BR7070
Others: BR-RS305, BR-RS405, BR-RS505, BR-RS805
Tektro
HD-R310
HD-R510
Trp
Hylex Flat Mount
Hylex RS Flat Mount
HD-T910
Another version option Premiun E+ Version
Additional information
| Size | W:26.3 x H:29.7 mm W:1.04 x H:1.17 in |
|---|---|
| Version / color | Performance / Red |
| Package Contents | 1 pair of brake pads + 1 spring |
| Note | – |
Related Products
High Performance
Excellent instant brake power with comfortable braking.
Easy and Fast
Easy to install and easy to fit. Low bedding in time with good modulation. Fast to enjoy your ride.
Silent
Good anti-noise ability and quiet in most of your braking time.
Quality
Our goals! Insist to provide the fancy and best quality products to the user as always.
Testing Machine for bicycle brakes
Disc Brake Pad Installation Guide
Step 1.
First, loosen caliper mounting bolts with tool.
Step 2.
Loosen pin on top of caliper.
Step 3.
Remove existing brake pads from caliper.
Step 4.
Use tool to retract pistons back to its horizontal position.
Step 5.
Prepare new pair of TOP BRAKE disc brake pads.
Step 6.
Assembled TOP BRAKE brake pads with spring. Insert them into the caliper.
Step 7.
Tighten the mounting bolts, then later the pin.
Step 8.
When brake pad installation is completed, check if rotor is aligned at center.
| Option | 1 Pair, 1 Pair w/Pin, 2 Pairs |
|---|
